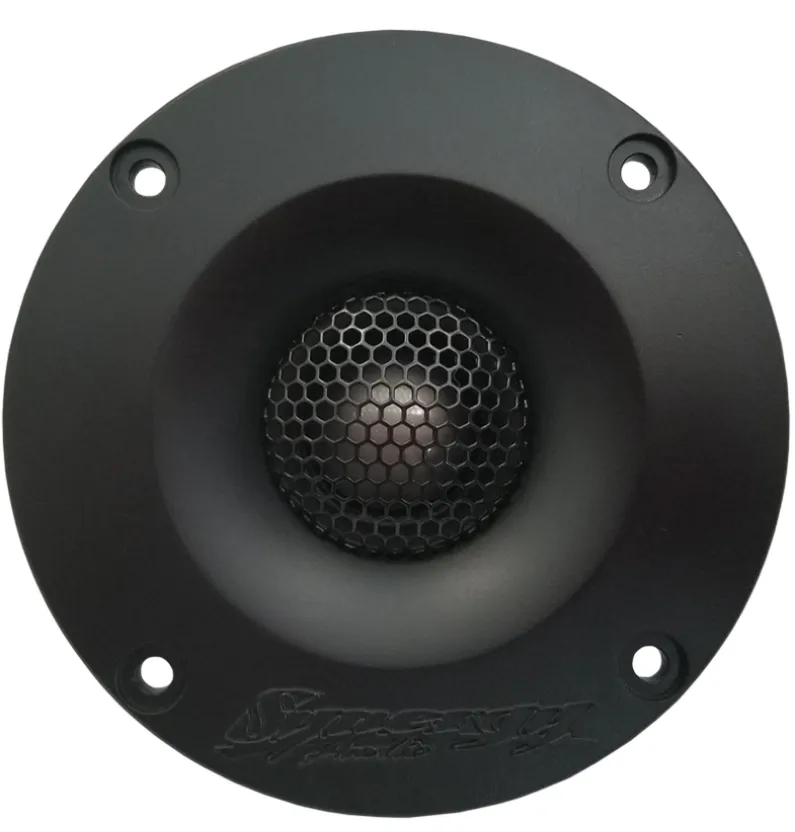

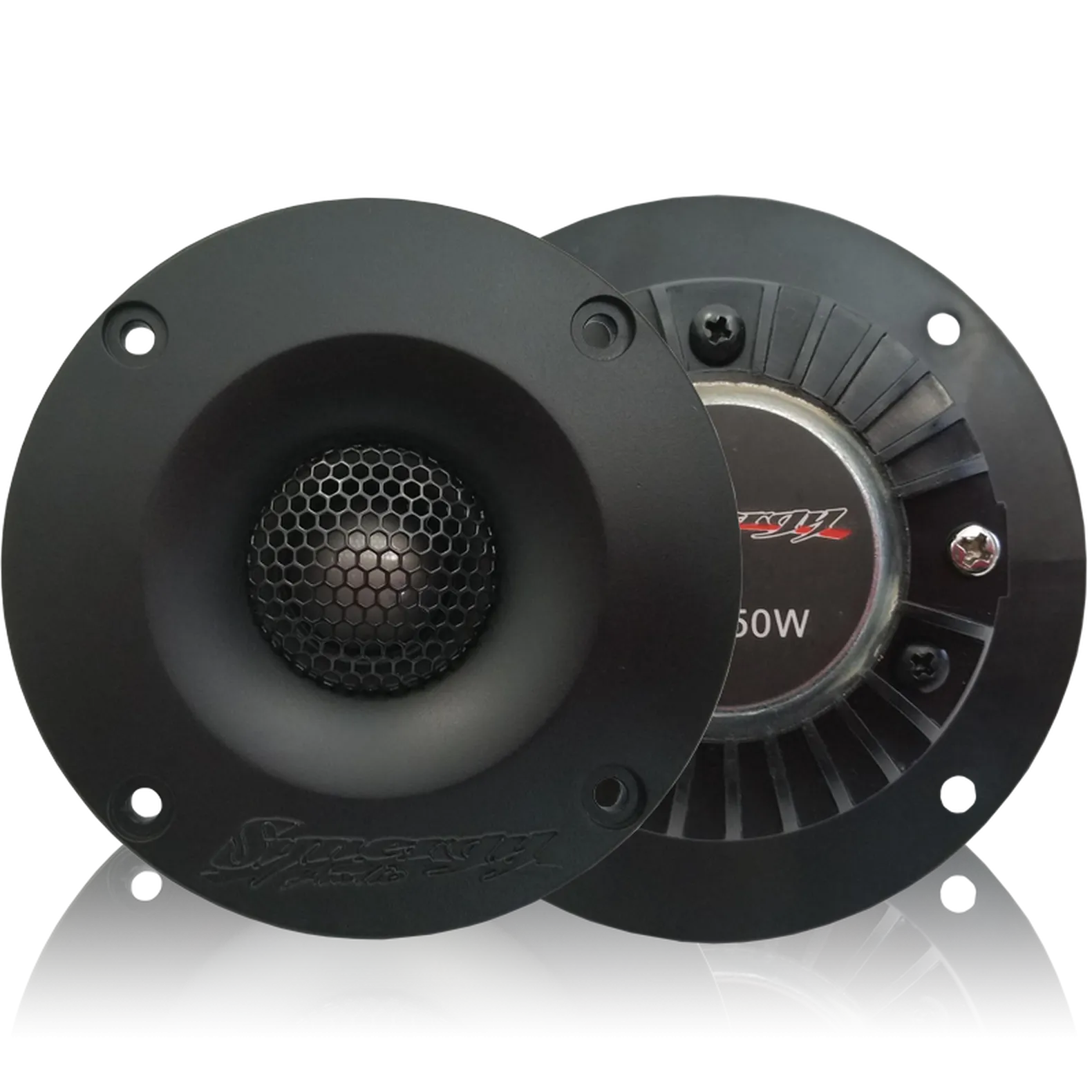

Synergy Audio WFO HDT-25 High Definition Titanium Dome Tweeters

• Proprietary injected plastic custom tooled horn flare and body for increased sensitivity and dispersion.
• Synergy Audio logo molded into mounting flange

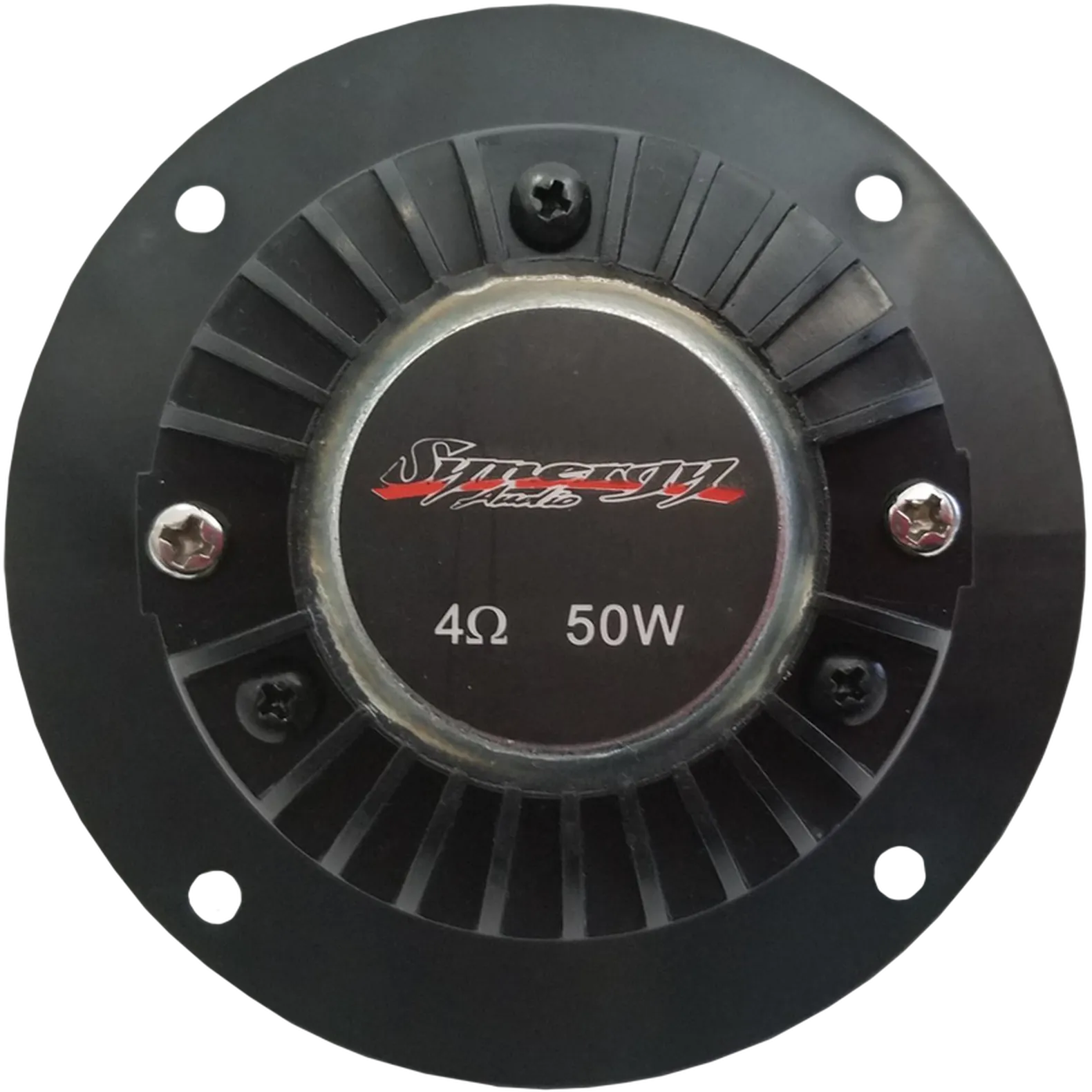

• Powerful lightweight neodymium motor structure
• 25mm titanium dome with half roll surround
• Acoustically transparent protective grill

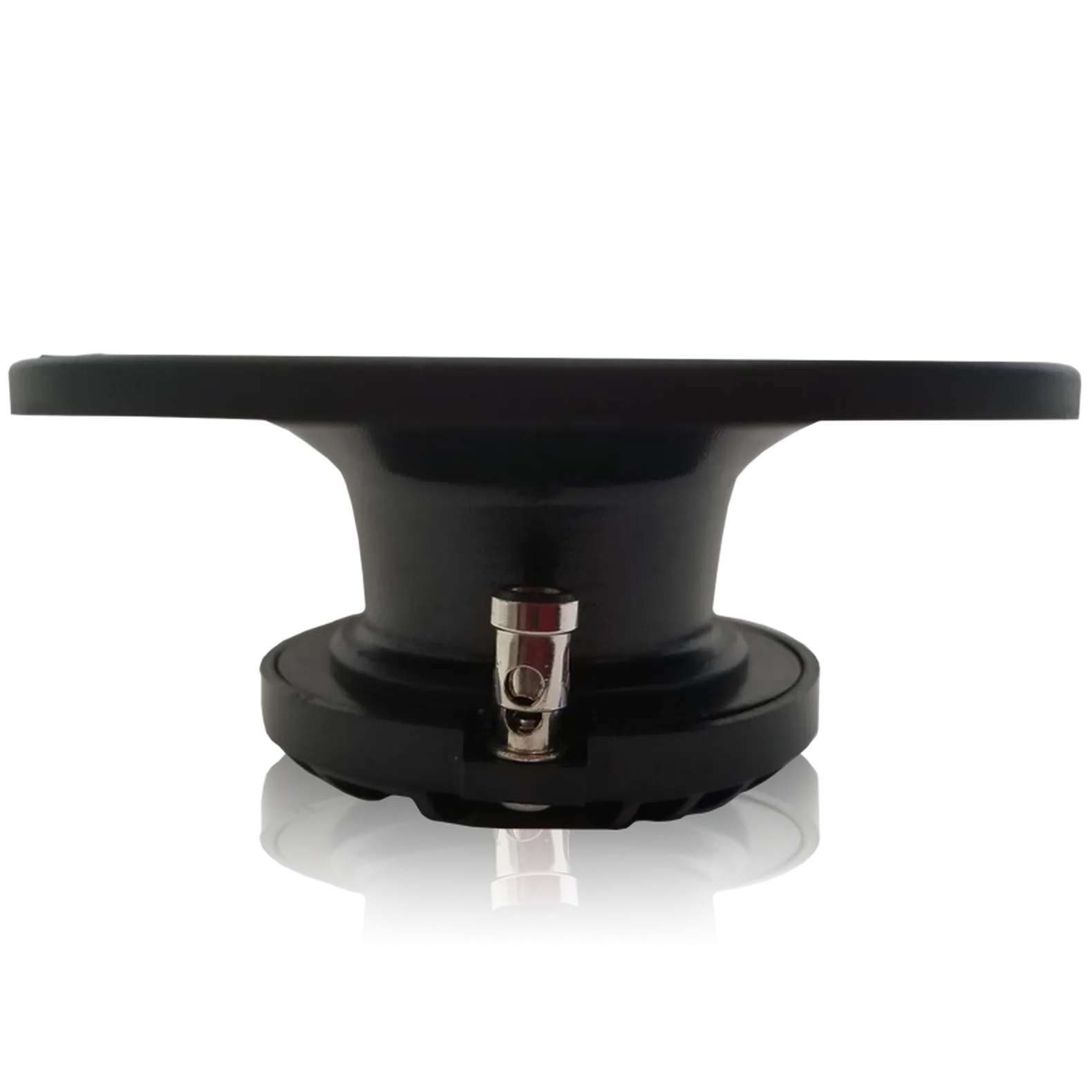

• Spring loaded speaker connectors for ease of installation

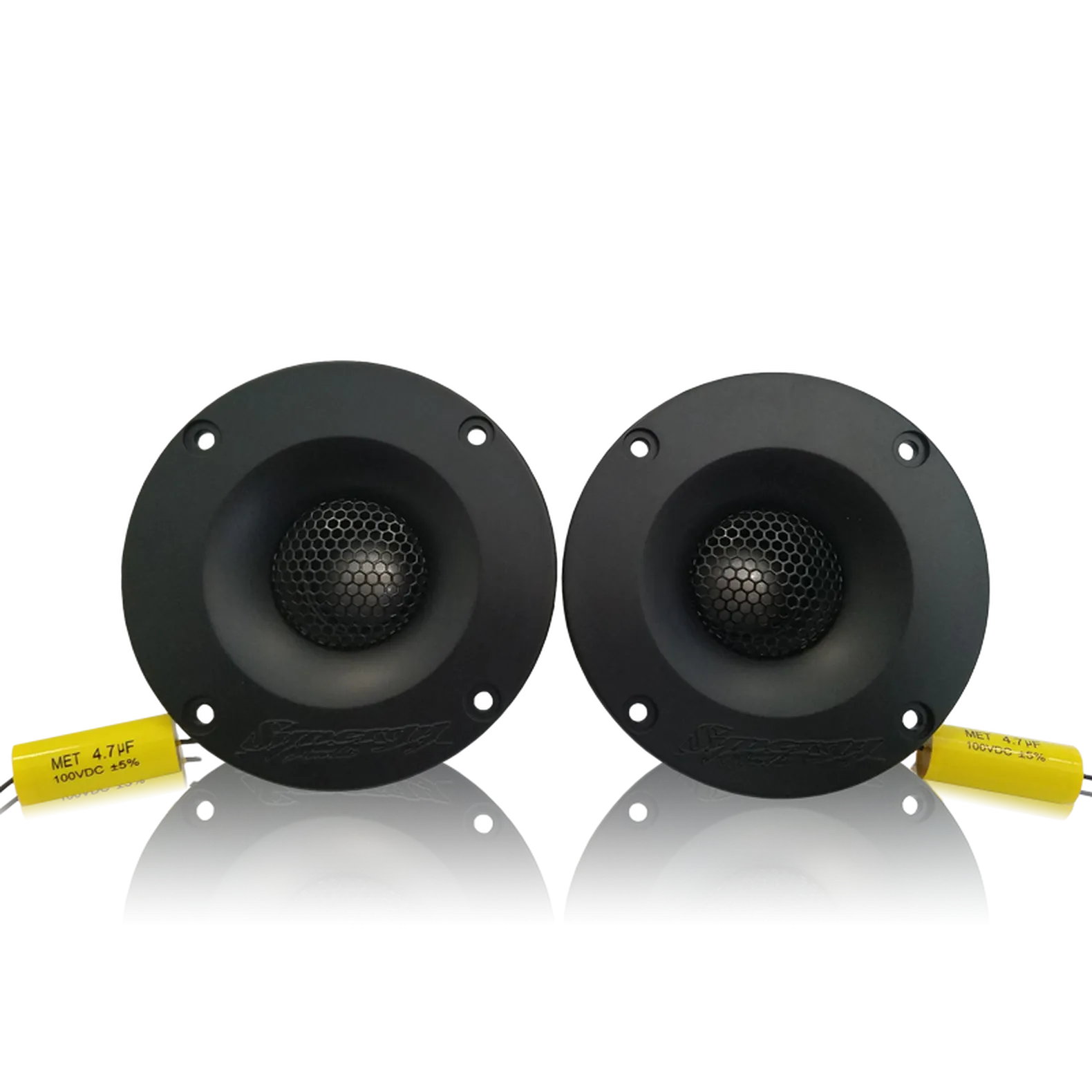

• 50 watts rms with supplied polypropylene capacitor
• 4 ohm impedance
• Designed and engineered in the USA

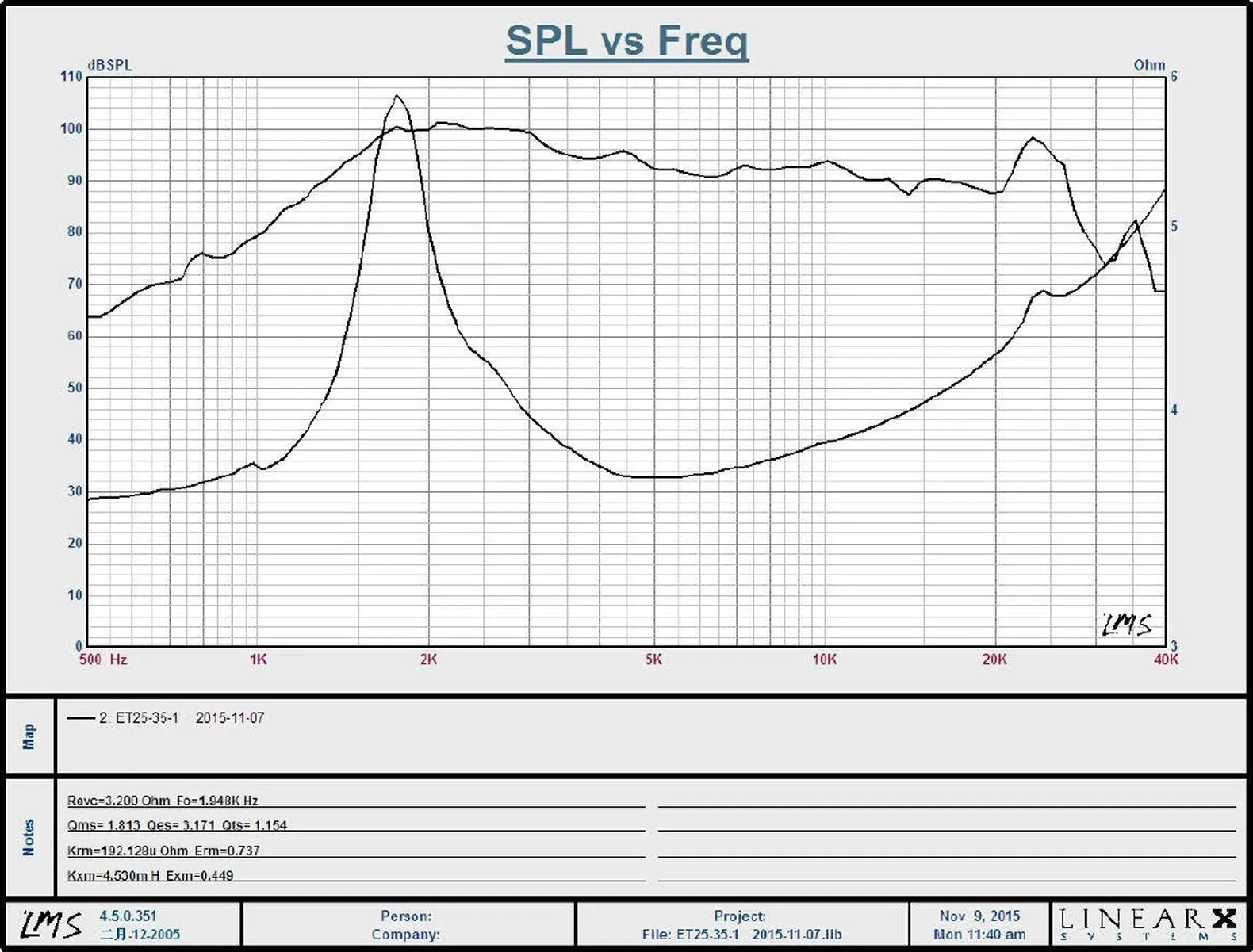

WFO HDT-25 T/S Specifications

• Re= 3.2 ohm
• Fs= 1.95K hz
• Qms = 1.813
• Qes = 3.171
• Qts = 1.154
• SPL = 96db 1w/1m

WFO HDT-25 Installation Specifications

• 94mm flange diameter
• 58mm cut out diameter
• 34.5mm mounting depth
