Product Details
＋

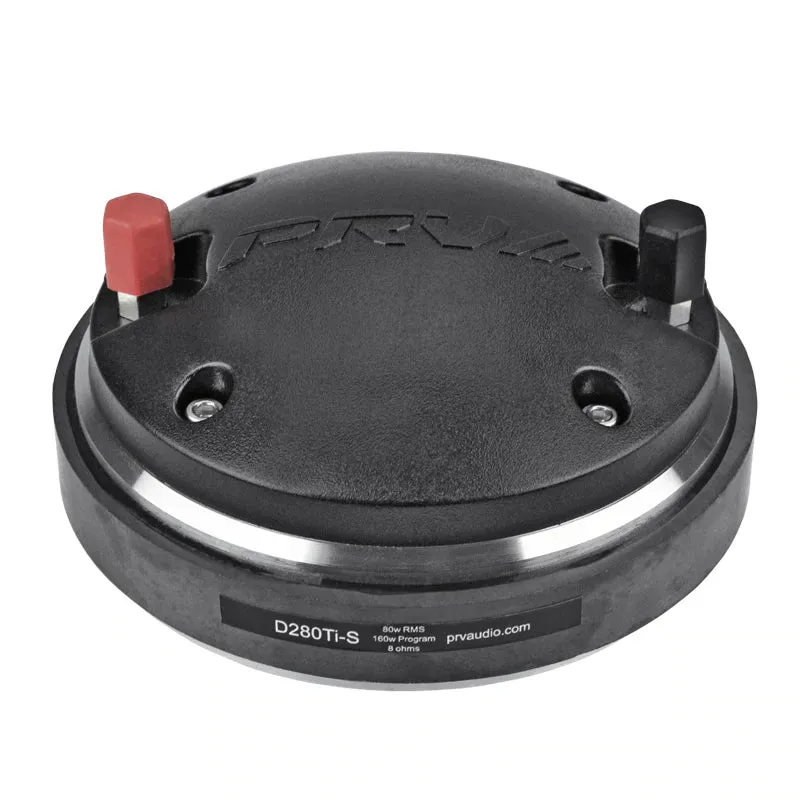

The NEW PRV Audio D280Ti-S Compression Driver offers a surprisingly smooth response and high efficiency from mid-range through high range frequencies thanks to the pure titanium diaphragm.
- Throat Diameter: 1″
- Type: Screw-On
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 80 Watts
- Program Power: 160 Watts
Perfect for studio monitors and stage monitors, and stage speakers where high sound quality is required. A 2 and 3 or bolt pattern ensures easy replacement with current 1" bolt-on horns and weighs just 3.3 lbs. A standard 1 3/8" screw ensures easy replacement with current 1" horns and weighs just 3.3 lbs.
D280Ti-B and D280Ti-S is designed to ensure a quality sound and long lasting play in most any environment and in the rare event you need to make a repair to your driver, simple, quick diaphragm replacements are available.
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 1" (25.4mm) |
| Nominal impedance | 8 Ohms |
| Rated AES Power Handling (RMS) | 80 Watts |
| Program Power | 160 Watts |
| Sensitivity 2.83V at 1m | 109 dB |
| Recommended Hi Pass Crossover** **For Full Power Handling | 1800 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB | 1,300 – 20,000 Hz |
| Voice Coil Diameter | 1.75”(44.4 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 1.65 T |
| Magnet Material | Ferrite |
