Product Details
＋
Features

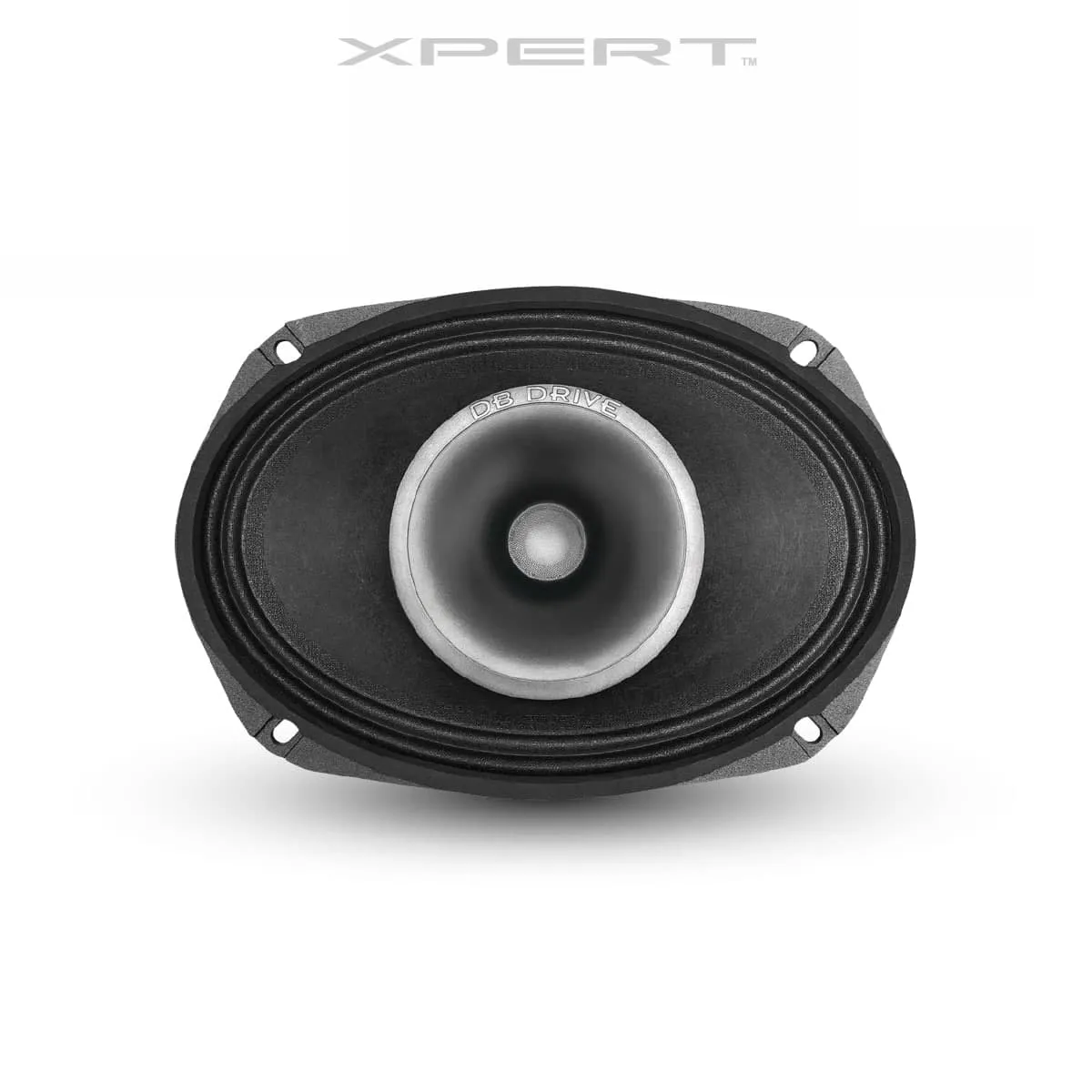

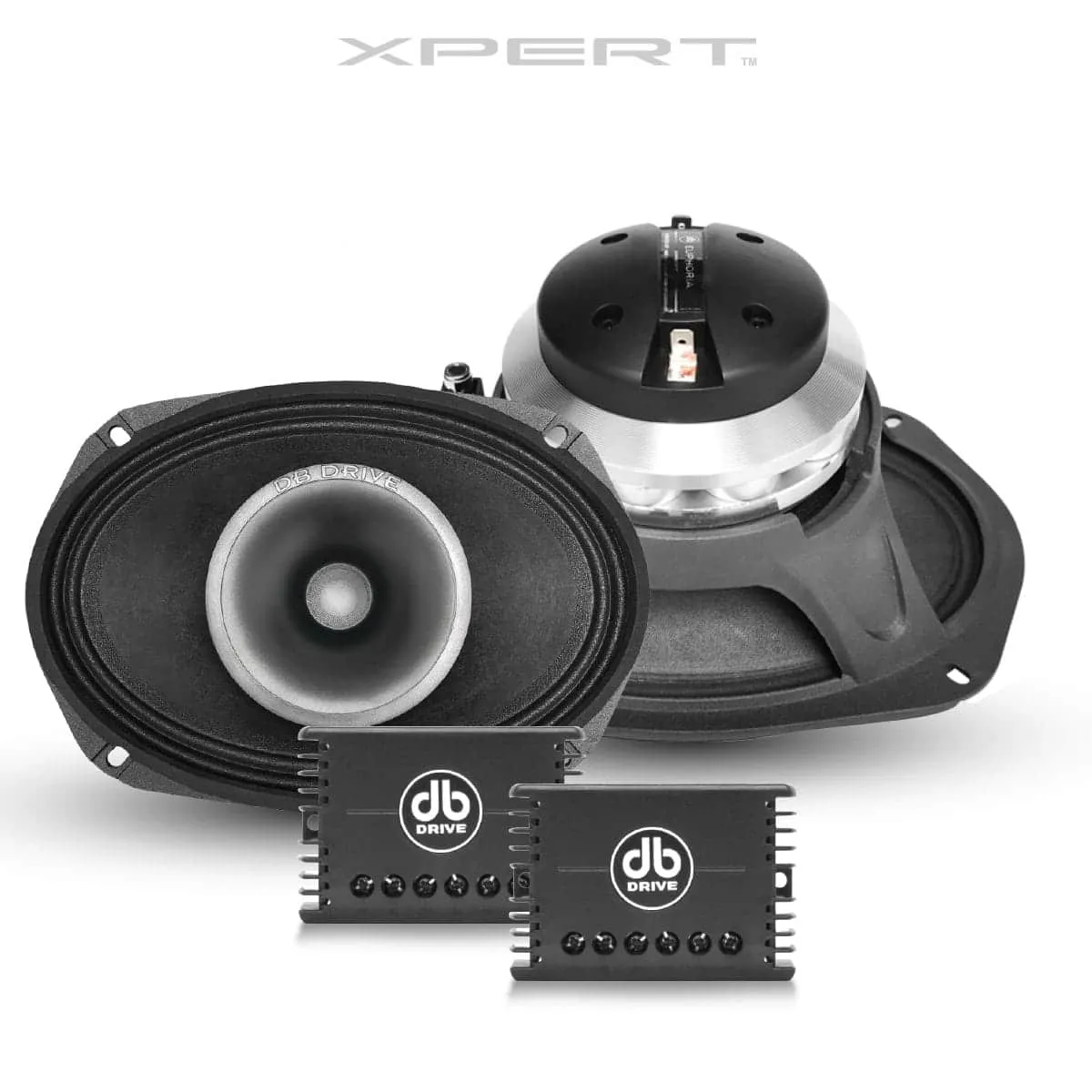

- 6″x9″ 2-Way Loudspeaker
- 10 Neodymium Ring Magnet Assembly

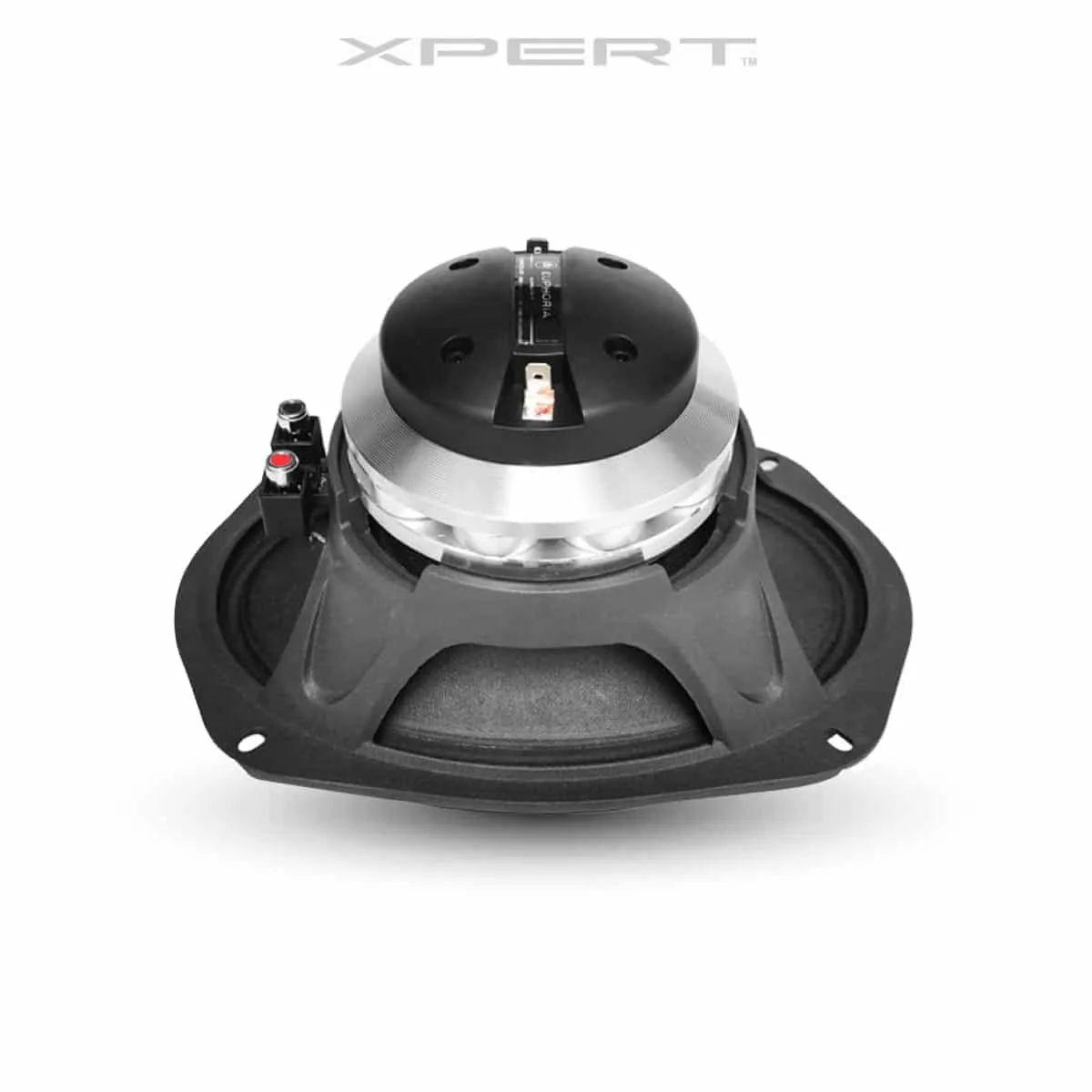

- Rear Mounted Full Sized Compression Driver
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36MM) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

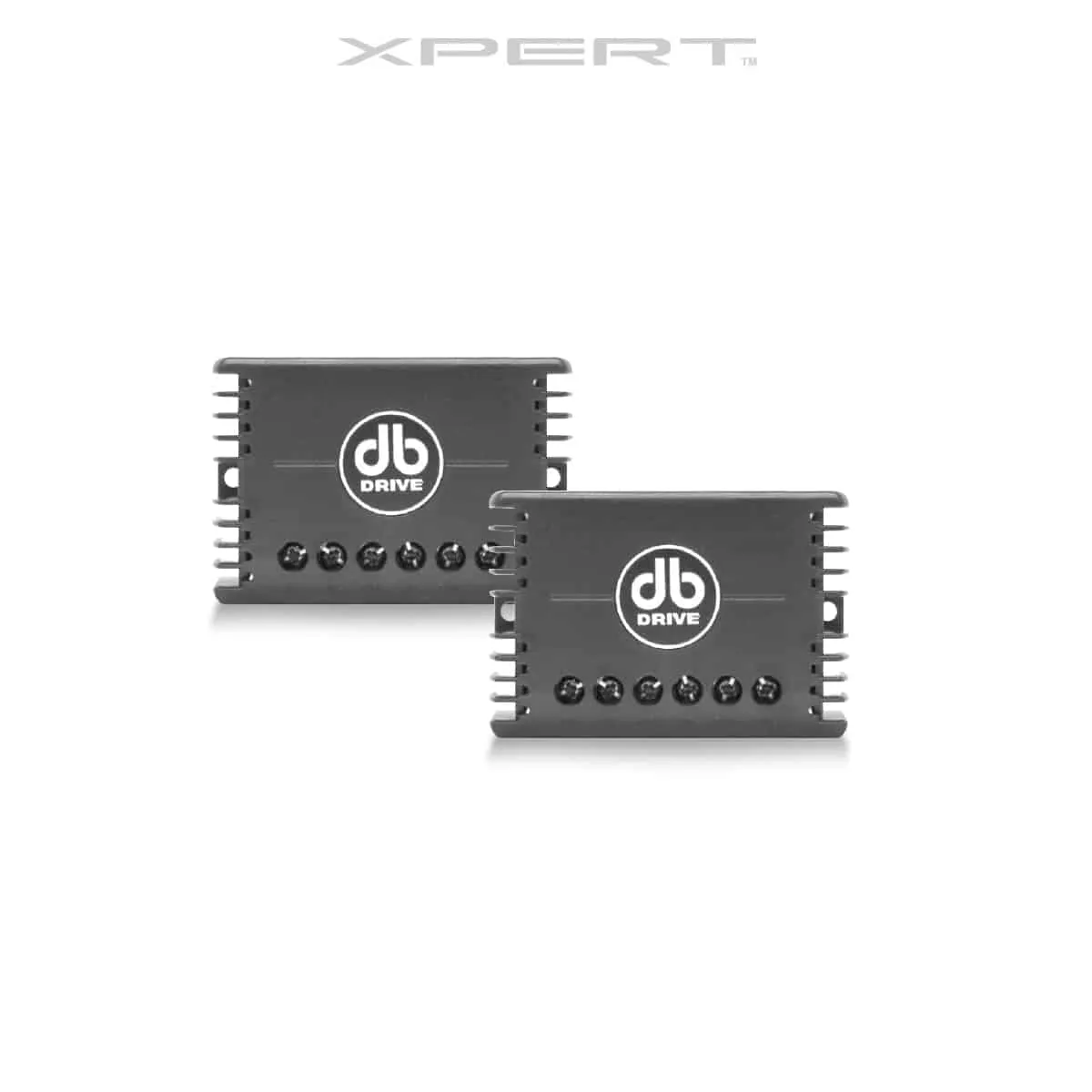

- 12dB Passive Crossover Included
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 78.1Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 10.75 |
| Electrical Quality Factor (Qes) | 0.35 |
| Total Quality Factor (Qts) | 0.34 |
| Compliance Equivalent Volume (Vas) | 10.6L |
| Mechanical Compliance (Cms) | 0156 mm/N |
| Efficiency (1W/1M) | 93.4 dB |
| REPLACEMENT DIAPHRAGM: EXNCD-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 500 Watts |
| Dynamic Wattage | 1000 Watts |
| Sensitivity (1w/1m) | 93.4 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.42″ (112.30mm) |
| Mounting Diameter: | 5.82 x 8.66″ (148mm x 220.42mm) |
